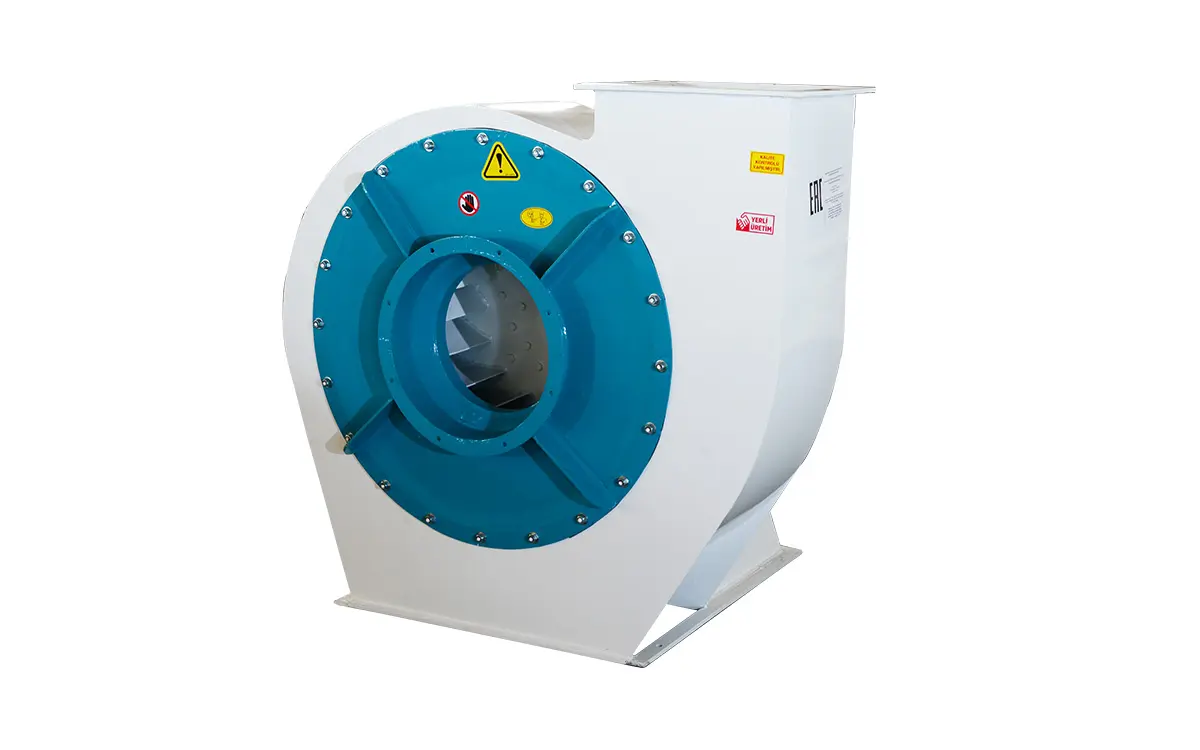

Dust Aspirator ÇKAS Çift Kartal: The Core of Industrial Dust Extraction

The industrial Dust Aspirator ÇKAS (centrifugal dust fan), manufactured by the premier Turkish brand Çift Kartal, represents the beating “heart” of any modern aspiration system. In the food, milling, and grain processing industries, controlling airborne particulate matter is not merely a matter of complying with basic sanitary regulations; it is a critical, non-negotiable safety factor.

Installing a highly reliable industrial centrifugal fan from the ÇKAS series allows plant operators to establish a controlled low-pressure (vacuum) environment within their technological lines. This system effectively captures and extracts fine, airborne dust to filters or cyclones, entirely preventing it from escaping into the working environment of the facility.

Why is a Dust Extraction System Critical for Your Production?

During the transportation, cleaning, crushing, milling, and packaging of grain crops, massive amounts of organic dust are continuously generated. This volatile particulate matter poses three major threats to your facility, all of which are successfully neutralized by the Dust Aspirator ÇKAS:

1. Combustion and Explosion Hazards: Grain and flour dust, when suspended in the air at specific concentrations, form a highly explosive mixture. In such an ATEX-rated zone, the slightest static spark or overheated bearing can lead to catastrophic consequences. An industrial centrifugal fan constantly extracts this hazardous mixture, keeping dust concentrations well below the lower explosive limit (LEL).

2. Protection of Personnel Health: The prolonged inhalation of fine organic dust leads to severe occupational respiratory diseases for plant operators. A robust dust extraction system guarantees clean, breathable air in all working zones, ensuring compliance with OSHA and European workplace safety standards.

3. Prevention of Equipment Wear: Organic and mineral dust acts as a powerful abrasive. When it infiltrates the bearings, gearboxes, and moving parts of your conveyors, it drastically accelerates mechanical wear and shortens equipment lifespan.

Operating Principle and Design Advantages of the ÇKAS Series

This heavy-duty Dust Aspirator ÇKAS operates on the principle of centrifugal force. Dust-laden air is drawn in through the central axial inlet. It is then captured by the rapidly rotating blades of the radial impeller. Centrifugal force accelerates the air outward toward the walls of the spiral-shaped scroll casing (often called the “snail”), after which it is expelled through the discharge outlet under high static pressure.

The engineering team at Çift Kartal has meticulously designed this unit to meet and exceed the highest global industry standards:

Static and Dynamic Balancing

The greatest enemy of any rapidly rotating industrial fan is vibration, which stems from rotor imbalance. Every single Dust Aspirator ÇKAS undergoes rigorous factory static and dynamic balancing on high-precision testing benches before shipment. This critical step guarantees completely silent machine operation (within acceptable aerodynamic limits), eliminates vibrations that could destroy shaft bearings, and maximizes the operational lifespan of the electric motor.

High Efficiency at Low Energy Consumption

The aerodynamic profile of the backward-inclined or radial blades is calculated to generate maximum static pressure and a massive volumetric airflow at optimal RPMs (typically 1500 RPM for this series). This ensures impressively low energy consumption during continuous 24/7 operation. Even the most powerful model in the lineup (the ÇKAS-22 featuring a 22 kW motor) demonstrates an outstanding coefficient of performance (COP) in its industrial class.

Easy Maintenance and Exceptional Longevity

The casing design features flanged connections and an accessible inspection panel, ensuring easy installation and providing rapid access to the impeller for periodic cleaning or structural inspection. The reinforced, thick-gauge steel casing easily withstands the abrasive friction of high-velocity particulates, guaranteeing a long service life without the risk of the metal wearing through.

Integration into Technological Processing Lines

The Dust Aspirator ÇKAS does not operate in isolation—it is the driving force of a larger, interconnected mechanism. Its primary objective is to create the necessary suction draft for other processing and handling equipment.

For example, during the operation of grain bucket elevators, a significant amount of dust is generated in the boot and the head sections when the product is scooped and discharged. Connecting a well-calculated aspiration network to the elevator instantly resolves this issue. Similarly, robust aspiration is absolutely necessary when loading bulk materials into finished product bins ÇKKB. As the dense product fills the silo, it displaces air; without proper aspiration, this dust-laden air would be violently forced out into the facility.

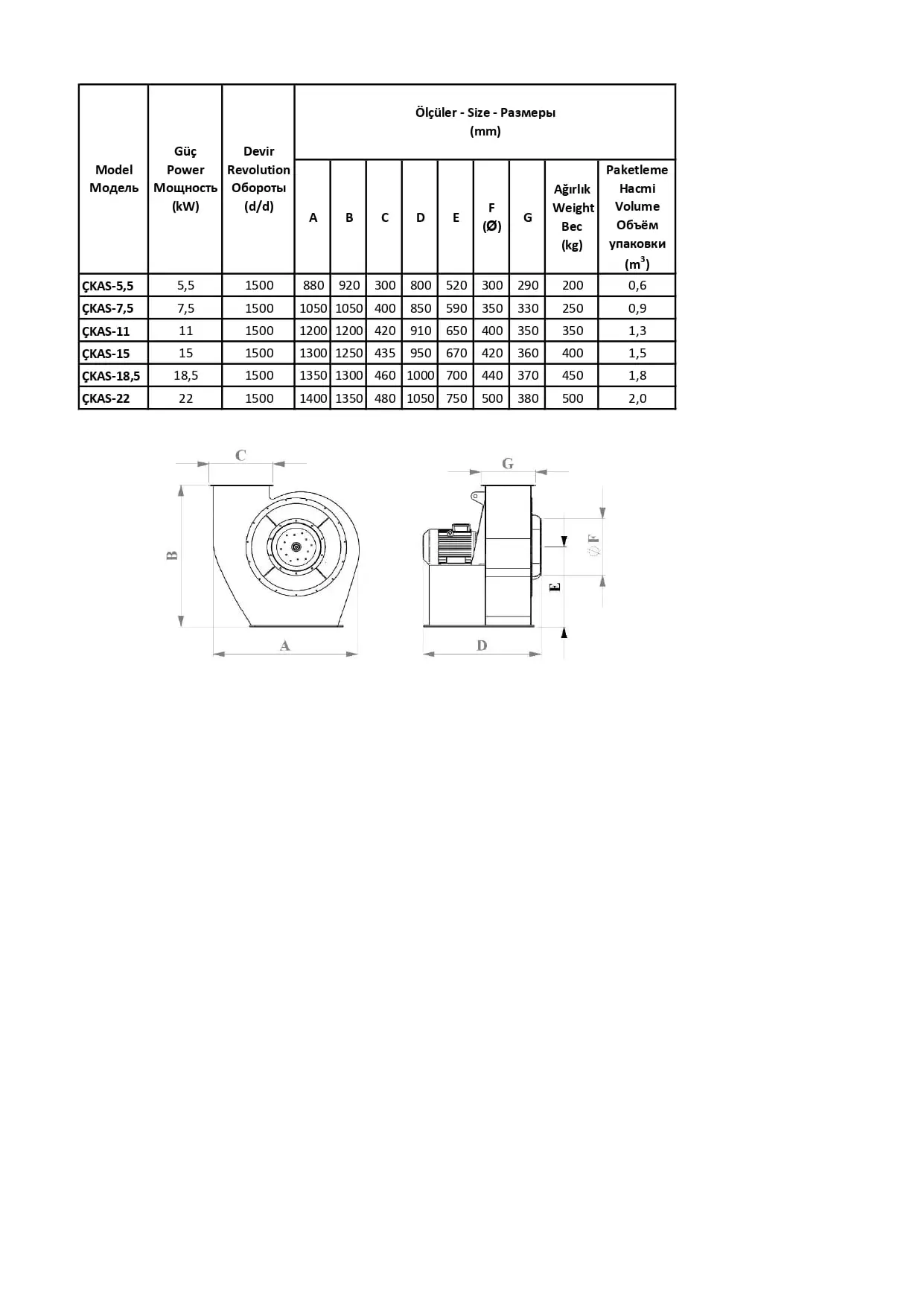

📊 Technical Specifications and Dimensions (ÇKAS Series)

Our comprehensive model range allows you to select the perfect fan for any required airflow volume and static pressure. All models are designed to operate efficiently at 1500 RPM. All physical dimensions are specified in millimeters (mm).

Frequently Asked Questions (FAQ)

How does the Dust Aspirator ÇKAS differ from a standard ventilation fan?

Standard commercial fans create airflow but lack the power to overcome the high aerodynamic resistance (static pressure drop) of industrial ductwork, cyclones, and baghouse filters. The Dust Aspirator ÇKAS generates exceptionally high static pressure and features reinforced, self-cleaning blades capable of withstanding the impacts of solid dust particles.

How do I choose the correct motor power for my fan?

Selecting the right model (ranging from 5.5 kW to 22 kW) depends on the total length and diameter of your ducting, the number of dust extraction points, and the type of filtration equipment used. Our engineering team is ready to assist you by performing a precise aerodynamic calculation tailored to your facility.

Where should the fan be positioned in the system—before or after the filter?

In most modern milling applications, these centrifugal fans are installed after the baghouse filters or cyclones (on the clean-air side). This configuration places the system under negative pressure and significantly extends the lifespan of the fan’s impeller, as it is only pumping clean, non-abrasive air.
