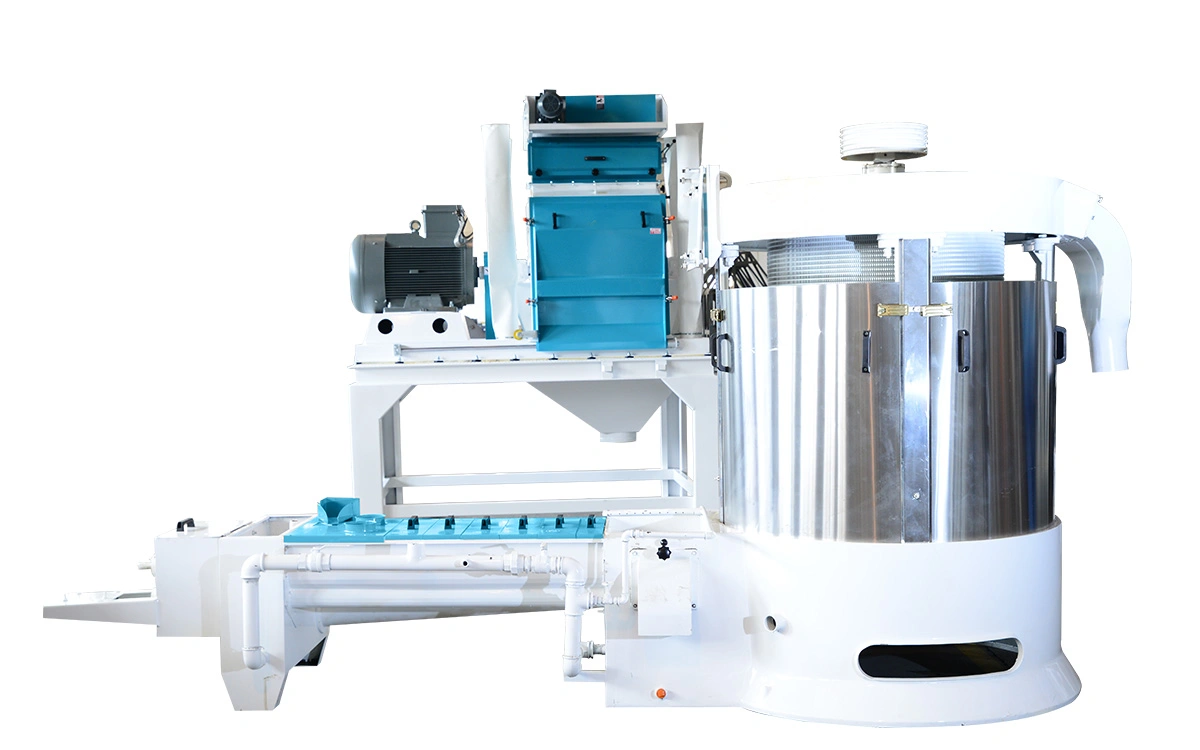

Vertical Grain Washer CKDY: The Benchmark for Deep Grain Cleaning

High-quality flour milling is impossible without perfectly clean and correctly tempered raw materials. The Vertical Grain Washer CKDY from the ÇİFT KARTAL factory is a high-efficiency engineering system designed for flour mills that strive to achieve maximum yields of premium grade flour. Through multi-stage processing in a vertical plane, this machine ensures not only the removal of dust and surface dirt but also the deep disinfection of the grain.

Technological Units: How the Vertical Grain Washer CKDY Operates

The design of the CKDY unit provides for the sequential passage of grain through several functional zones, allowing for a comprehensive result in a single cycle.

1. Washing Tank and Destoning: Grain enters the tank where a stable water-grain flow is formed. Due to the difference in density, heavy mineral impurities (stones, glass, metal) settle to the bottom and are removed by the reverse movement of a specialized spiral screw.

2. Flotation Chamber: In this zone, gravitational separation occurs. Clean grain settles for further processing, while light organic impurities, such as husks, empty grains, or stem residues, float to the surface and are removed.

3. Vertical Dewatering Column: This is the final stage, where through screw compression, the grain is pressed against a screen surface. This ensures mechanical dewatering, partial peeling of the outer shell, and final removal of residual contaminants.

Using the Vertical Grain Washer CKDY significantly reduces the microbiological load on the grain, which is critical for the long-term storage of the finished flour.

Advantages of Integrating the Vertical Grain Washer CKDY into the Milling Line

Implementing a wet cleaning method for grain using the CKDY system provides a milling enterprise with several strategic advantages:

• Improved Milling Quality: After washing, the grain becomes more elastic, allowing the rollers of the Horizontal Roller Mill CKEV to more easily separate the endosperm from the bran.

• Increased Flour Yield: Thanks to uniform tempering (moistening), the yield of pure endosperm mass increases, while waste is reduced.

• Equipment Protection: Effective stone removal within the CKDY washer prevents damage to the roller corrugations and sifter frames in subsequent stages.

Special attention is paid to the water circulation system. The Vertical Grain Washer CKDY is equipped with a drainage system featuring anti-foaming functionality, which prevents the accumulation of surface-active pollutants and improves water usage efficiency.

Reliability and Standards: Why Choose the Vertical Grain Washer CKDY

CKDY series machines are manufactured in strict compliance with international food industry standards. The use of acid-resistant AISI 304 stainless steel ensures corrosion resistance even with constant contact with water and aggressive organic compounds released during the grain washing process.

The adaptive design of the inlet and outlet pipes allows for easy installation of the machine into existing technological chains. If your mill is already equipped with a Drum Sieve ÇKTE for preliminary dry cleaning, installing the CKDY washer is the logical next step toward producing export-quality products.

FAQ: Understanding the Vertical Grain Washer CKDY

1. Does the Vertical Grain Washer CKDY consume a lot of water? The system is optimized for rational consumption. Thanks to the efficient impurity separation and anti-foaming system, water usage meets industry standards for high-tech milling.

2. What maintenance is required for the dewatering column? The dewatering column has a self-cleaning screen system; however, periodic inspection of the screw and screen surface is recommended to maintain maximum dewatering efficiency.

3. Is this washer suitable for all types of grain? Yes, the Vertical Grain Washer CKDY effectively handles wheat, rye, and other cereal crops that require conditioning before milling.
