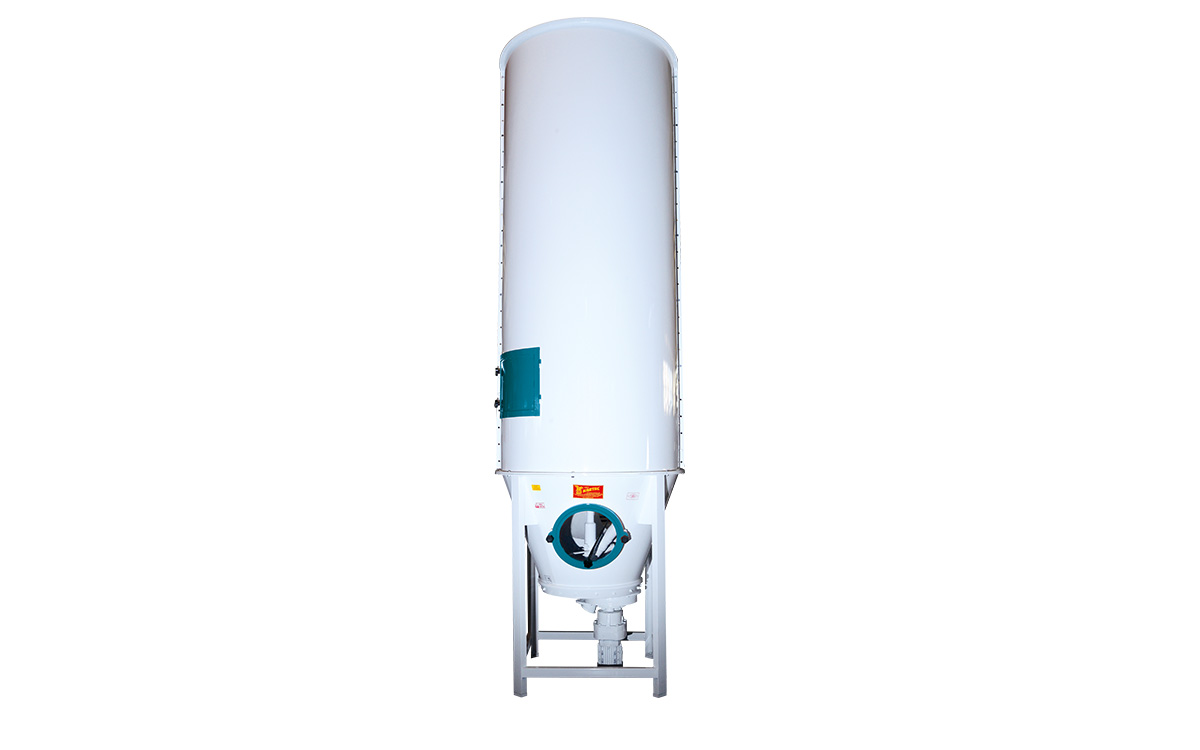

Jet Filter ÇKJF: The Standard of Excellence in Industrial Air Filtration

In today’s industrial landscape, effective dust management is not merely a matter of environmental compliance—it is a critical requirement for equipment longevity and workplace safety. The Jet Filter ÇKJF by ÇİFT KARTAL is a high-performance industrial air filtration unit designed to capture fine particulate matter in demanding production environments. Utilizing advanced pulse-jet regeneration technology, this system ensures the seamless operation of aspiration networks in flour mills, elevators, and processing plants worldwide.

Technological Purpose and Industry Applications

The Jet Filter ÇKJF is engineered to purify dust-laden air streams from various dry particles. Models ÇKJF-15 and ÇKJF-30 offer the optimal solution for facilities with moderate loads (processing up to 60 tons of product per day).

This versatile dust collection system is widely utilized across several sectors:

• Flour and Cereal Milling: Captures fine flour dust in grinding and grain cleaning sections.

• Woodworking: Efficiently collects sawdust and fine wood particles.

• Construction Materials: Provides aspiration for cement and dry mix production.

• Chemical Industry: Filters granulated and powdered reagents safely.

Operating Principle: Advanced Pulse-Jet Air Purification

The superior efficiency demonstrated by the Jet Filter ÇKJF is based on a sophisticated two-stage filtration and regeneration process. Dust-filled air enters the internal filter chamber under the force of an external fan. As the air passes through specialized filter bags, dust particles are trapped on the outer surface, while the purified air exits through the top outlet to the atmosphere or back into the facility for recirculation.

The core advantage lies in the automatic self-cleaning system. At programmed intervals, a controller sends a signal to electromagnetic valves, releasing a short but powerful burst of compressed air into each bag. This causes the bag to expand rapidly, shaking off the accumulated dust layer into the conical hopper below. Thanks to this technology, the pulse jet filter remains operational 24/7 without requiring shutdowns for filter maintenance.

Design Advantages and Engineering Reliability by Çift Kartal

Çift Kartal prioritizes the durability and efficiency of its aspiration units. The Jet Filter ÇKJF is constructed from high-grade carbon steel with a robust anti-corrosion coating.

1. Unmatched Filtration Quality: The residual dust level after filtration is only 0.5–1.2 mg/m³. This is significantly cleaner than the strict international limit of 20 mg/m³, making your facility environmentally superior.

2. Compact Vertical Footprint: The upright design saves valuable floor space while providing a large filtration surface area.

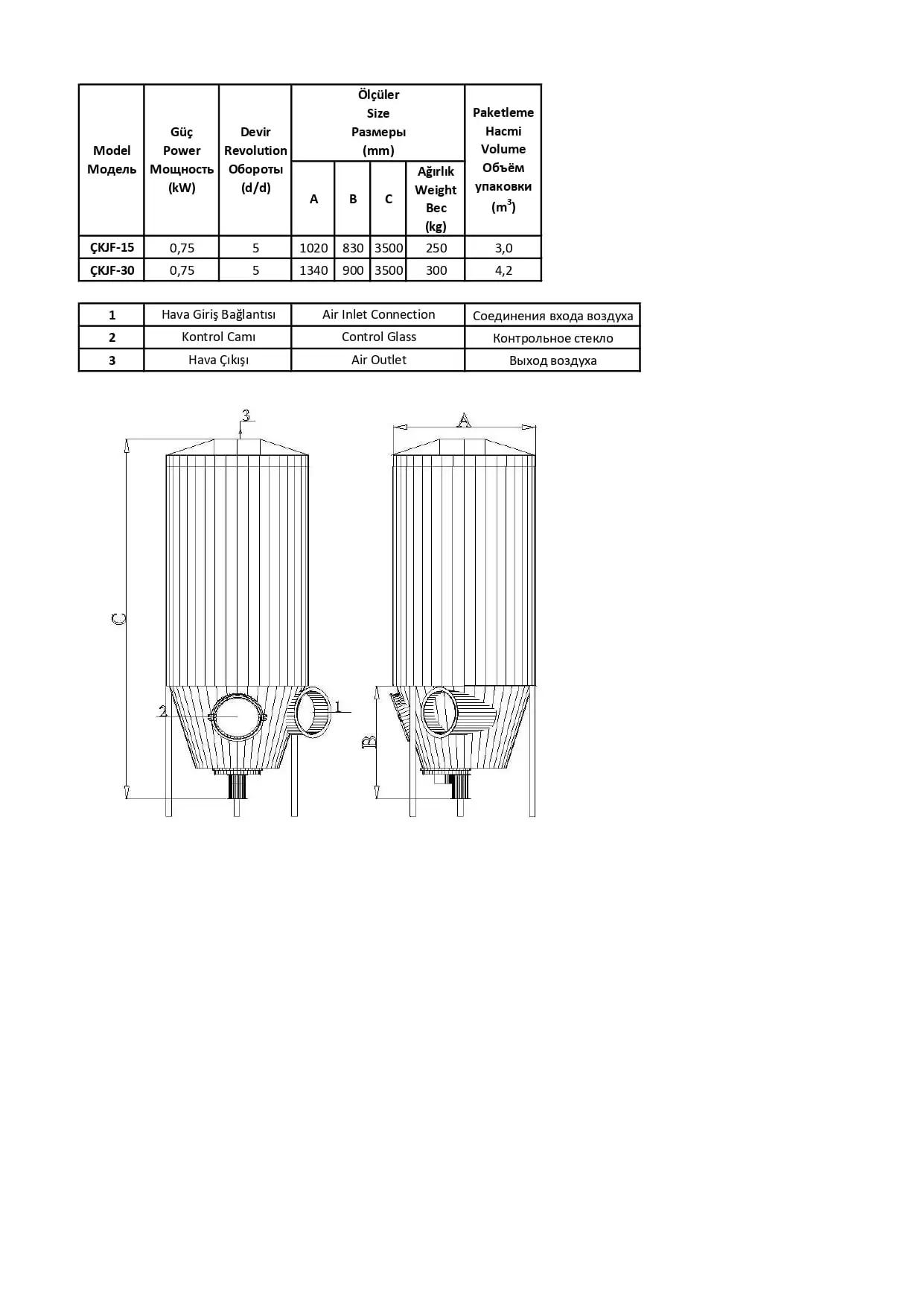

3. Observation Port: A control glass window in the lower hopper allows operators to visually monitor the dust discharge process and the condition of internal components.

4. Superior Energy Efficiency: The unit consumes only 0.75 kW of power for the discharge screw, making it one of the most cost-effective solutions in the aspiration system market.

Economic Benefits of the ÇKJF System

Investing in the Jet Filter ÇKJF pays off by reducing cleaning costs, protecting expensive motors from premature wear due to dust ingress, and recovering valuable products (such as high-quality flour) back into the production cycle. Furthermore, cleaner air improves working conditions, directly impacting employee productivity.

For larger-scale operations, we recommend integrating this unit with our pneumatic aspirators ÇKAS or powerful entoleters ÇKIK for a complete and integrated product purification flow.

FAQ: Frequently Asked Questions about Jet Filter ÇKJF

1. How often do the filter bags need to be replaced? With correctly adjusted pulse-jet pressure, the bags in a Jet Filter ÇKJF typically last between 1 to 3 years, depending on the abrasiveness of the dust. Replacement is easily performed through the top or side access panels.

2. Can the jet filter operate outdoors? Yes, the housing is weather-resistant. However, for winter operation, it is recommended to ensure that the compressed air supply is dried and heated to prevent moisture condensation on the filter media.

3. What is the difference between the ÇKJF and the Supersonic model? The ÇKJF series (models 15 and 30) is designed for localized aspiration and smaller milling lines. The Supersonic model is more powerful, intended for large industrial complexes with airflows up to 800 m³/min.
